2% Breaking rate Peanut Shelling Machine 380v 50hz 3 phases

Brand Name : XT

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T L/C

Supply Ability : 5 SET/Month

Delivery Time : 15-40 Days

Packaging Details : Plywood pallet with wrapping film

warranty : 1 year

after warranty service : video technical support,online support,spare parts

voltage : 380v 50hz 3 phases

raw material : peanut

function : shelling

advantage : Easy Operation High Efficiency

Contact Now

Groundnut Peanut Shelling Machine Peanut Dehulling Machine

Peanut shelling machine is designed to clean raw, sun-dried in shell peanut,split the hard shell and get the red skin peanut. Peanut sheller have two part: one is de-stoner and another is shelling machine.

 Put peanut in shell into de-stoner separate the stones by the gravity. and then is conveyed to the feed hopper in the shelling machine by the stoning machine. When it meets 1# drum first, the rotating rasp bar working against the fixed grid notch-board detaches the shell from the nut. As they go further and drop from the front sifter, most shells will be blown outside of the machine as they pass the ventilation tube. When the shelled nut, together with few of the un-shelled peanuts drop to the separating sieve, the kernels would go to the surface to the outlet and reach the container. Meanwhile, the remaining un-shelled peanut would go under the sieve to the second outlet and reach the 2# drum, conveyed by the air blower, for repeat shelling against the thin grid notch-board. After this process, they would again go through the separating sieve to detach the shell from the kernel. The nut and shell would be separated thoroughly after the whole process.

Features
 Stable performance & strong durability
 High efficiency & minimum split ratio
 Easy operation & low maintenance
 Peanut sheller increases productivity and saves manpower, it promotes the raw peanut processing from family to industrial scale.

Technical information
 	 			Model
 			XT-LY-800
 			XT-LY-2000
 			XT-LY-3000
 			XT-LY-5000

 			voltage
 			380v 50hz 3 phases

 			power
 			7.7kw
 			11.5kw
 			21.5
 			31.5kw

 			China peanut Capacity
 			800-1000kg/h
 			2000kg/h
 			3000kg/h
 			5000kg/h

 			Peeling rate
 			99%
 			99%
 			99%
 			99%

 			Breaking rate
 			2%
 			2%
 			2%
 			2%

 			HS CODE
 			84386000
 			84386000
 			84386000
 			84386000

 			Weight
 			800KGS
 			1200kgs
 			1350kgs
 			1550kgs














Product Tags:

2% Breaking Rate Peanut Shelling Machine

3 Phases Peanut Shelling Machine

380v 50hz Groundnut Shelling Machine

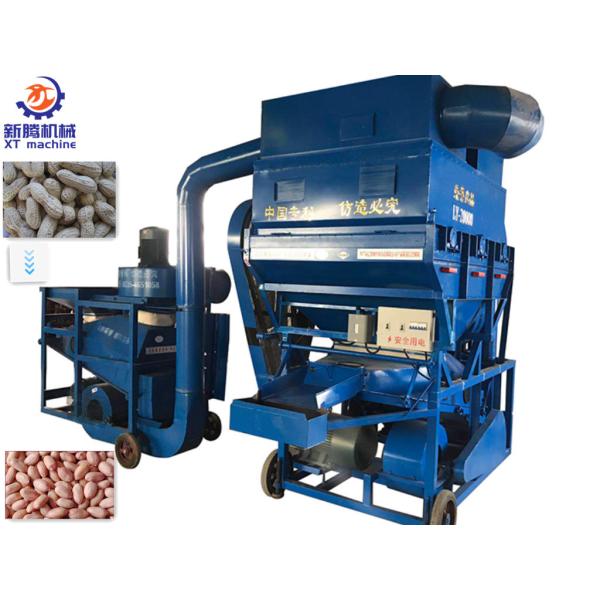

2% Breaking rate Peanut Shelling Machine 380v 50hz 3 phases Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Yantai XT Machinery Manufacturing Co.,Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Model	XT-LY-800	XT-LY-2000	XT-LY-3000	XT-LY-5000
voltage	380v 50hz 3 phases
power	7.7kw	11.5kw	21.5	31.5kw
China peanut Capacity	800-1000kg/h	2000kg/h	3000kg/h	5000kg/h
Peeling rate	99%	99%	99%	99%
Breaking rate	2%	2%	2%	2%
HS CODE	84386000	84386000	84386000	84386000
Weight	800KGS	1200kgs	1350kgs	1550kgs
